Integrarack IR MultiBallast 5° East / West ‘W’ Configuration

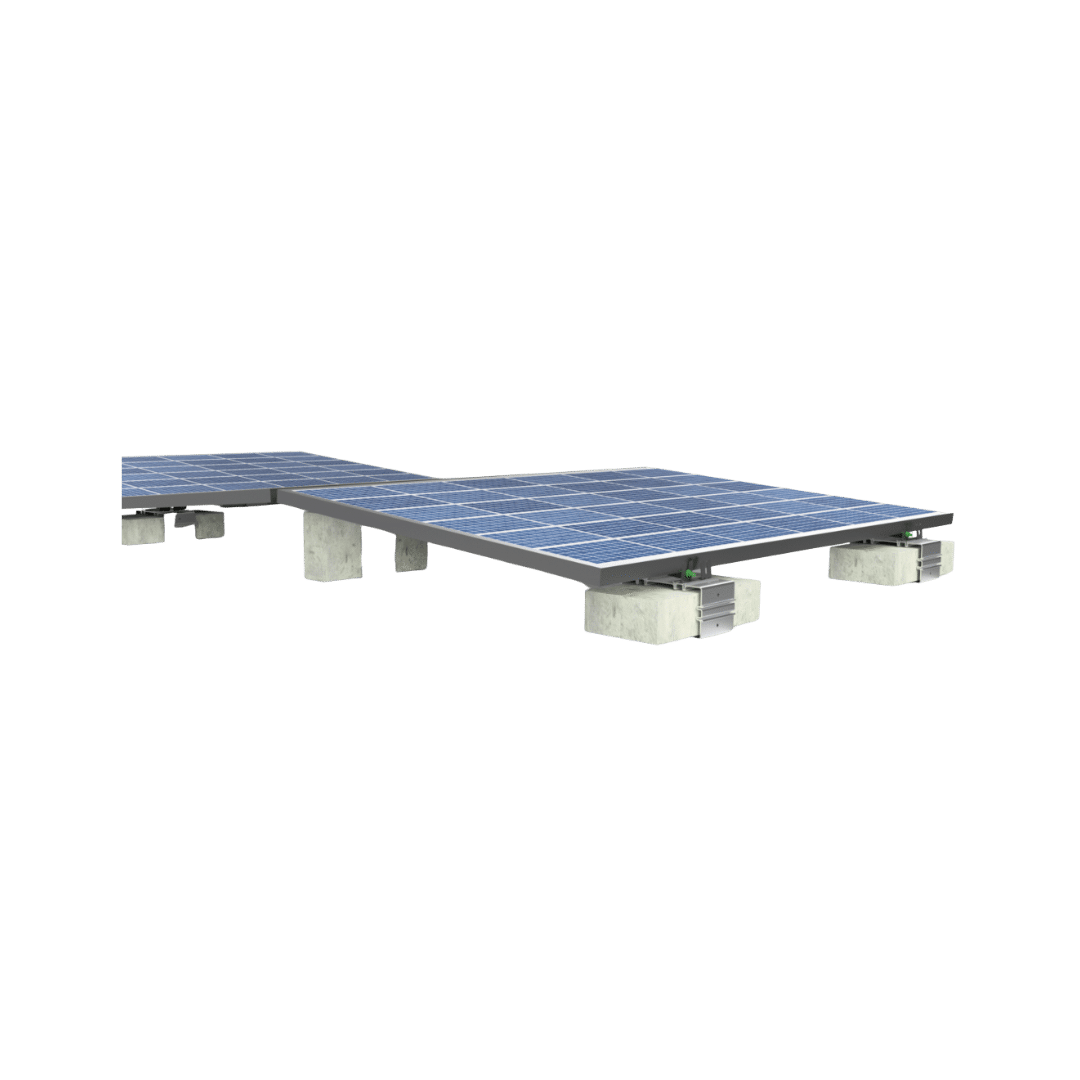

Integrarack IR MultiBallast 5° East / West ‘W’ Configuration The IntegraRack IR MultiBallast™ (5° East/West ‘W’) is a modular, non-penetrating solar racking system built from aircraft-grade aluminum. Designed for both flat roofs and ground mounts, this configuration delivers a gentle 5° tilt with an East/West “W” layout — ideal for maximizing energy yield while reducing ballast weight. The MultiBallast system uses just four main components, can be ballasted with standard concrete blocks (CMU), or mounted with industrial polyurethane if needed. With its streamlined modular design, it’s fast to install, supports any panel size, and conforms to UL-2703 for bonding and mechanical strength. Product Features 5° East/West ‘W’ tilt orientation: provides lower profile and optimized energy capture with minimal ballast Built with aircraft-grade aluminum: lightweight yet strong for reliable performance and ease of installation Uses only four main components: simplifies inventory, shipping, and assembly Supports standard CMU block ballast or industrial-strength polyurethane: offers flexible mounting based on site constraints Wind spoiler option available: boosts wind resistance for higher wind zones UL-2703 certified: meets bonding and mechanical performance standards required for solar racking systems Works with any size solar module: supports everything from standard to jumbo panels Permitting-friendly design: often does not require building permits thanks to its ballast-based, non-penetrating structure IR-W5MBCB Engineering and Data Sheet
